EP Gold Project.
Projects.
Region | Sonora, Mexico |

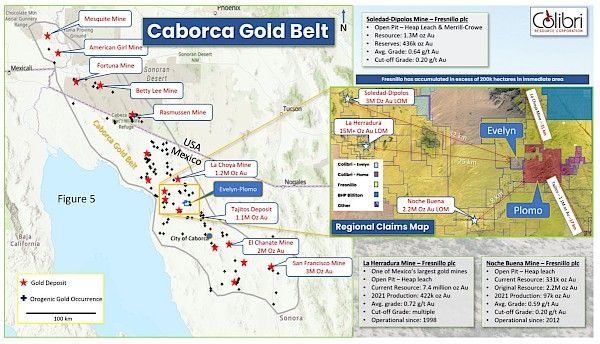

Location | Caborca Orogenic Gold Belt |
Metals | Au |
Ownership | 100% |
NSR | 0% on Evelyn and 2% on Plomo |
Size | 4,766 Hectares |
Stage | Drill Exploration |

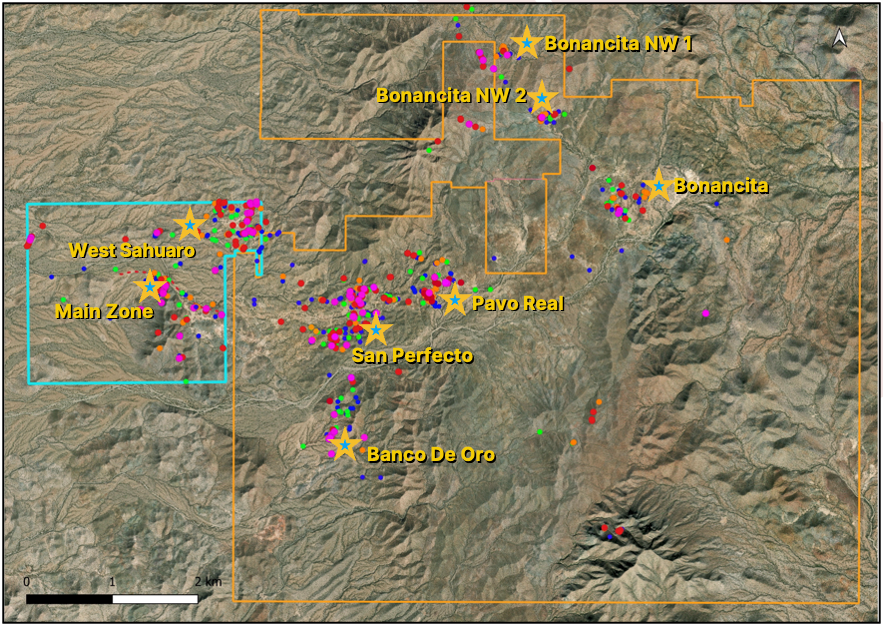

Exploration Targets | 14 |
Type of Mineralization | Orogenic / Mesothermal |

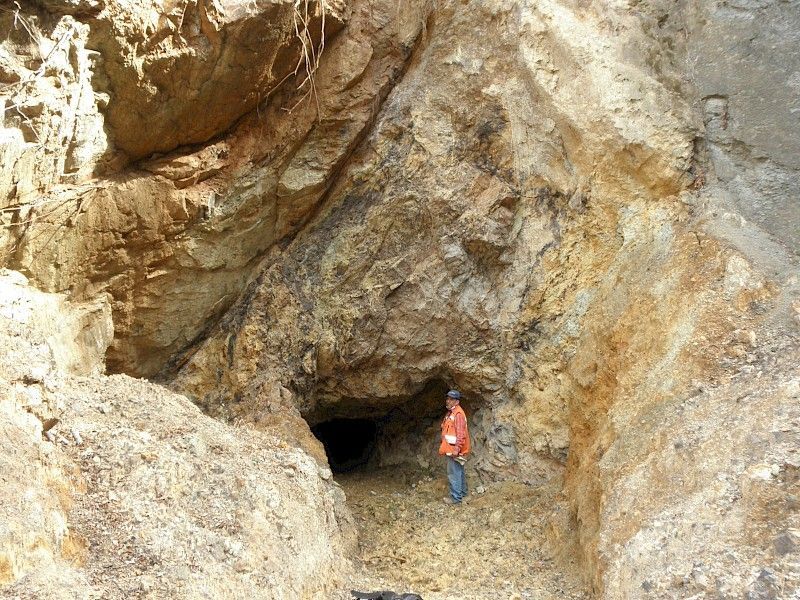

Active Artisanal Mining | Yes |
Location & Infrastructure.
Drilling Highlights.
Maps & Photo Gallery.
- Near a major highway (HWY #2)
- Infrastructure and support services are available in city of Caborca (pop. 60,000) – 60km SE of EP
- Accommodation, electricity, internet/phone services available in Caborca
- Qualified & experienced local workforce
- Water is available nearby
- Accessible year round by maintained ranch roads

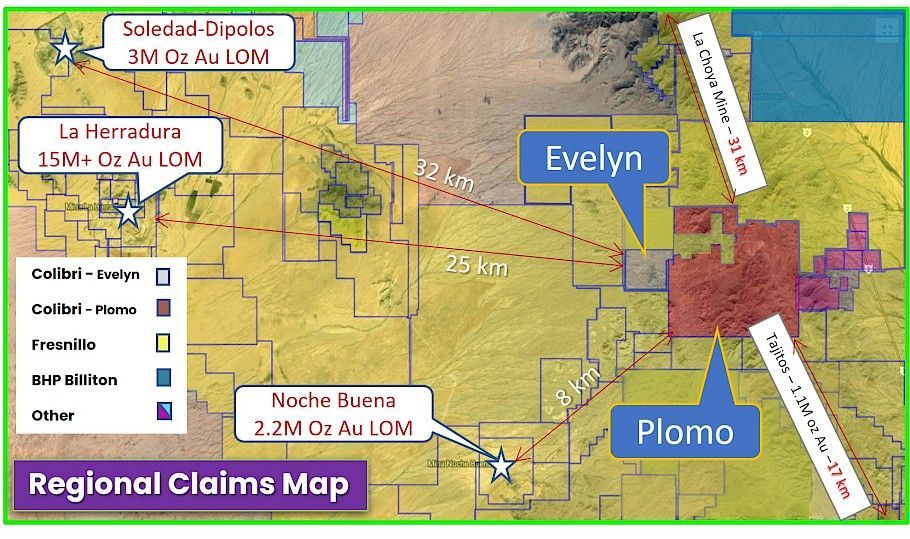

- Fresnillo owns in excess of 120k hectares in immediate area as part of a “district consolidation strategy” and is one of Mexico’s largest gold producers and the world’s largest silver producer.
EP Gold Project Summary.
Slide title
Write your caption hereButtonSlide title
Write your caption hereButtonSlide title
Write your caption hereButtonSlide title
Write your caption hereButton
MAIN ZONE TARGET:
- EVE21-027: 14m at 2.63 g/t Au
- EVE22-029: 5m at 1.39 g/t Au and 9m at 0.18 g/t Au
- EVE22-042: 86m at 0.17 g/t Au and 6m at 0.18 g/t Au
- EVE22-184: 29m at 0.47 g/t Au (including 6m at 0.97 g/t Au) and 15m at 0.18 g/t Au

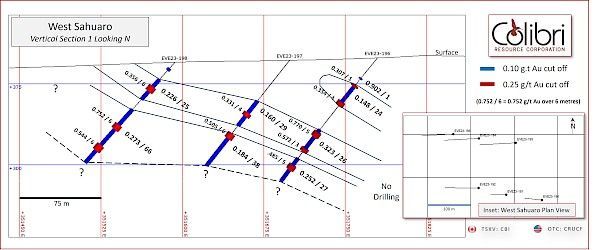

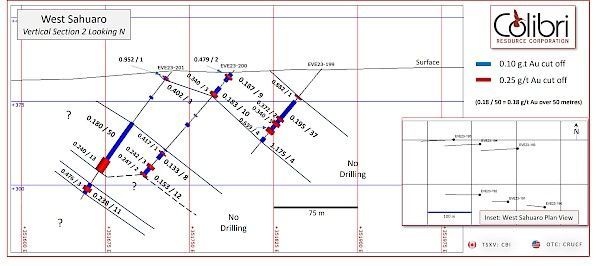

WEST SAHUARO TARGET:
- EVE23-196: 26m at 0.32 g/t Au and 27m at 0.25 g/t Au (hole ended in mineralization)
- EVE23-198: 66m at 0.273 g/t Au and 25m at 0.23 g/t Au (hole ended in mineralization)
- EVE23-201: 50m at 0.18 g/t Au and 11m at .24 g/t Au
SAHUARO TARGET :
- EVE21-019 : 15m at 2.36 g/t Au and 8m at 0.11 g/t Au
- EVE22-046: 2m at 1.94 g/t Au, 5m at 0.84 g/t Au, and 11m at 0.68 g/t Au
Note:
Average mining cutoff grade in area was 0.15 g/t Au in 2022 (Sub $1,800 USD per ounce)
Qualified person
Jamie Lavigne, PGeo, and a director for Colibri, is a qualified person as defined in National Instrument 43-101 and has reviewed and approved the technical information.
